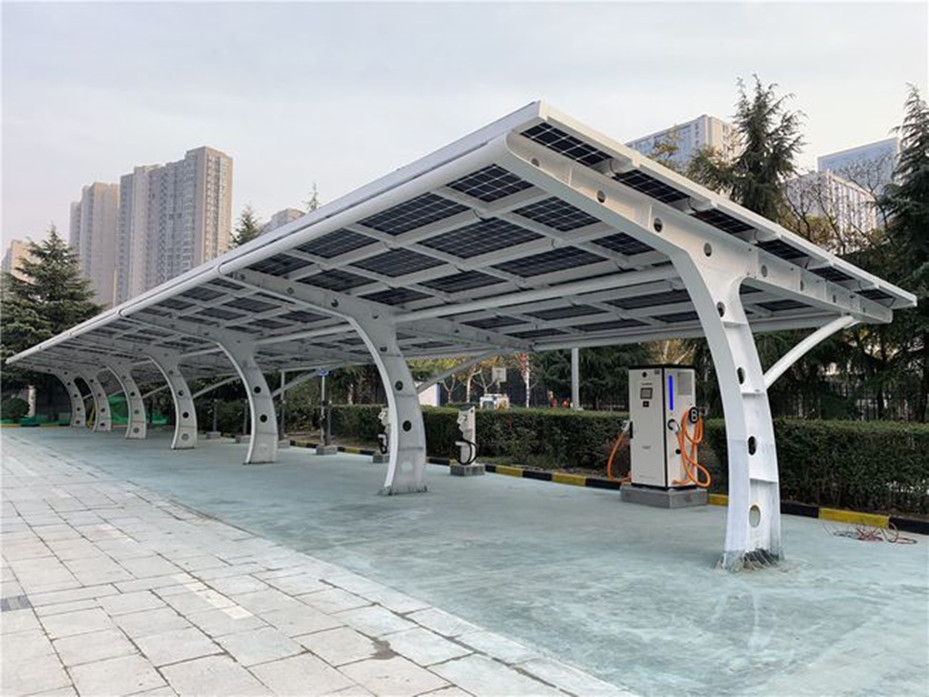

On/Off Grid Carbon Steel Solar Panel Carport Mounting Structure

Minimum Order Quantity : 1000 Watt/Watts Price : US $0.13-0.189 / Watts
Packaging Details : 1.Carton box,wooden pallet 2.Customized packing Delivery Time : within 15-25 work days after receipt deposit
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100000 Watt/Watts per Week
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000,TUV,CE Model Number: TF-C012

Detail Information

Application: Private, Government, Private, Enterprises Parking Lot Type: On-grid System, Or Off-grid System
Duration: Twenty-five Years Warranty: Ten Years
Installation Angle: 5~30° Wind Load: ≤60m/s
Snow Load: ≤1.4KN/m² Material: Q235B, Q345B, Component Aluminum Alloy & Stainless Steel Etc., Customized Upon Requirement.
Port: Ningbo, Shanghai Payment Terms: L/C,D/A,D/P,T/T
Delivery Date: 8-25 Days After Receive The Deposit Surface Treatment: Hot Dip Galvanizing Or Anodized
Thickness: Blank Or Printed
High Light:

Solar Panel Carport Mounting Structure

,

Anodized Carbon Steel Solar Panel Carport

,

4 Cars Carport Solar Systems

Product Description

1. On/Off Grid Carbon Steel Solar Panel Carport Mounting Structure

Our ground solar mounting system can be used in glass lands, gobi, desert, ceramic, macadam, shallow sea beach(less than 5m), and other geological environments, the install quality doesn't affect by groundwater.



The Solar Mounting brecket is used to fix the solar PV panels and provide support and inclination to the system.


And main depends on the field conditions we come up different foundation design, use the suitable racking post to provide high strength and withstand wind and snow loads and save the labor cost.



2. Benefits:


(1) The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.



(2) Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.


(3) Tianfon mounting system compatible with most of the major framed and frameless PV modules on the market.

(4) The racking systems can withstand extreme weather condition. The main supporting components have also been tested to ensure their structure and bearing capacity.


(5) Reduced installatin times due to high pre-fabrication leve; MInimized assembly time and effort (up to 40%).


(6) The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.



3. Technical Parameters :



Item Parameter
Application Private, Government and Enterprises Parking Lot
Material Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement.
Installation Angle Fixed degree,5-30°
Wind Load ≤60m/s
Snow Load ≤1.4KN/m²
Applicable Module Framed or Frameless
Module Orientation portrait or landscape
Module type Any type of PV moduels
Surface Treatment Hot Dip Galvanizing & Anodized
Warranty 10 years warranty and 25 years duration



4. Detailed Introduction:



On/Off Grid Carbon Steel Solar Panel Carport Mounting Structure 0

On/Off Grid Carbon Steel Solar Panel Carport Mounting Structure 1



5. Project Display



On/Off Grid Carbon Steel Solar Panel Carport Mounting Structure 2On/Off Grid Carbon Steel Solar Panel Carport Mounting Structure 3On/Off Grid Carbon Steel Solar Panel Carport Mounting Structure 4On/Off Grid Carbon Steel Solar Panel Carport Mounting Structure 5On/Off Grid Carbon Steel Solar Panel Carport Mounting Structure 6On/Off Grid Carbon Steel Solar Panel Carport Mounting Structure 7



6. Company Introduction:



On/Off Grid Carbon Steel Solar Panel Carport Mounting Structure 8



7. Main Products:

On/Off Grid Carbon Steel Solar Panel Carport Mounting Structure 9



8. Certificates:

On/Off Grid Carbon Steel Solar Panel Carport Mounting Structure 10



9.Packing & Delivery:



► Place of loading: Basic Seaport, China



► Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface



► Payment Terms: L/C,D/A,D/P,T/T



► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits

On/Off Grid Carbon Steel Solar Panel Carport Mounting Structure 11



10. Cooperate Customers:



On/Off Grid Carbon Steel Solar Panel Carport Mounting Structure 12



11. Necessary Information:



For the solution and quotation, we need some details as the following



No. Item Remarks
1 Location, Country of the Projects
2 What's Total Capacity (Watts) of PV Carport ?
3 Steel Carport or Aluminum Carport?
4 How many Parking Space?
5 What's the total size of the whole Carport?Better sending CAD drawing
6 Wind Load: xx m /s ?
7 Snow Load: kN/㎡
8 What’s watts of each module?
9 Module Size ? (Length * Width * Thickness)
10 What’s the Angle of Installation of solar panel?
11 When will the PV Carport be installed?
12 Layout of Solar Modules(Landscape or Portrait installation)
13 Requirement on the lowest height between solar panels and ground
14 your any other requirements ?
