On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket

Minimum Order Quantity : 1000 Watt/Watts Price : US $0.05-0.18 / Watts
Packaging Details : 1.Carton box,wooden pallet 2.Customized packing Delivery Time : within 15-25 work days after receipt deposit
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100000 Watt/Watts per Week
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: TF-G010

Detail Information

Application: Private, Government And Enterprise's Parking Lot Surface Treatment: Hot Dip Galvanizing And Anodized
Thickness: 0.5mm-15mm Type: On Grid System, Off Grid System
Duration: 25 Years Warranty: 10 Years
Installation Angle: 5~45° Wind Load: ≤60m/s
Snow Load: ≤1.4KN/m² Material: Q235B, Q345B, Component Aluminum Alloy & Stainless Steel Etc., Customized Upon Requirement.
Port: Tianjin, Shanghai, Qingdao Payment Terms: L/C,D/A,D/P,T/T
High Light:

15mm Solar Mounting Bracket

,

Off Grid PV Solar Bracket

,

On Grid PV Solar Bracket

Product Description

On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket Solar Structure



Solar photovoltaic bracket is a special bracket designed for placing, installing and fixing solar panels in solar PV power generation system. General materials are aluminum alloy, stainless steel... PV bracket products are divided into ground type, roof type, wall type, portable and so on....

Large PV power generation enterprised usually use the galvanized matal materials. One reason is the low cost, another is large load bearing. before install the engineer can design it according the instruction site environment, make full use of the light energy.





1. Technical Parameters :



Item Parameter
Application Mountain, Plain, Highland, Desert
Installation Angle Fixed degree,5-45°
Wind Load ≤60m/s
Snow Load ≤1.4KN/m²
Applicable Module Framed or Frameless
Material Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement.
Module Orientation portrait or landscape
Module type Any type of PV moduels
Surface Treatment Hot Dip Galvanizing & Anodized
Warranty 10 years warranty and 25 years duration



2. Detailed Introduction:​​

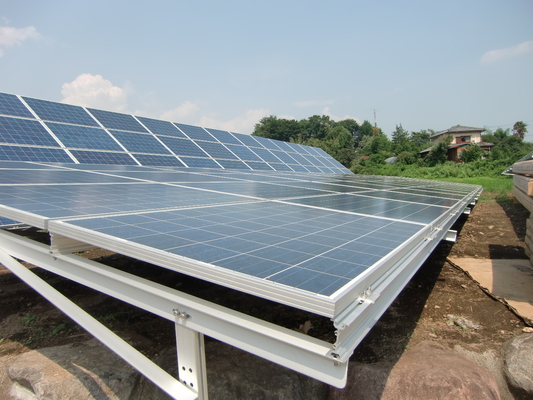

On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket 0

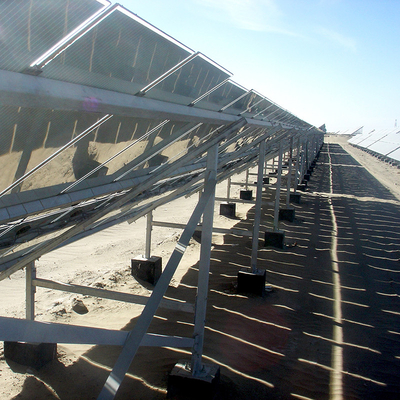

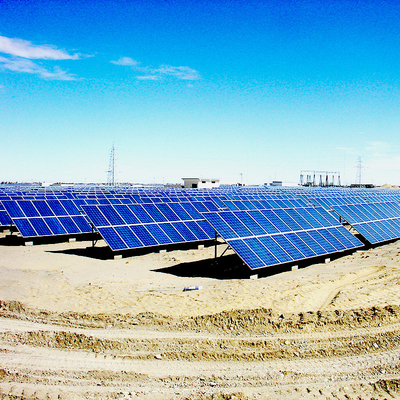

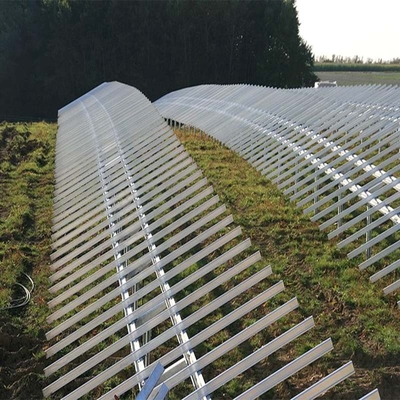

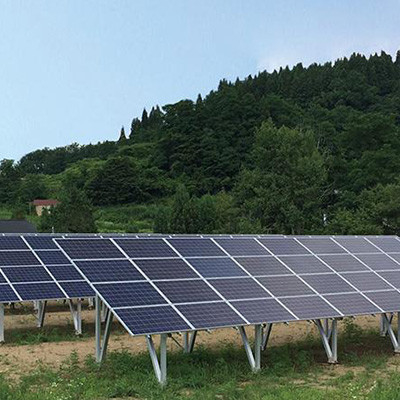

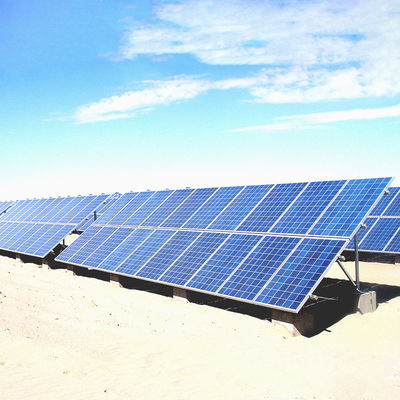

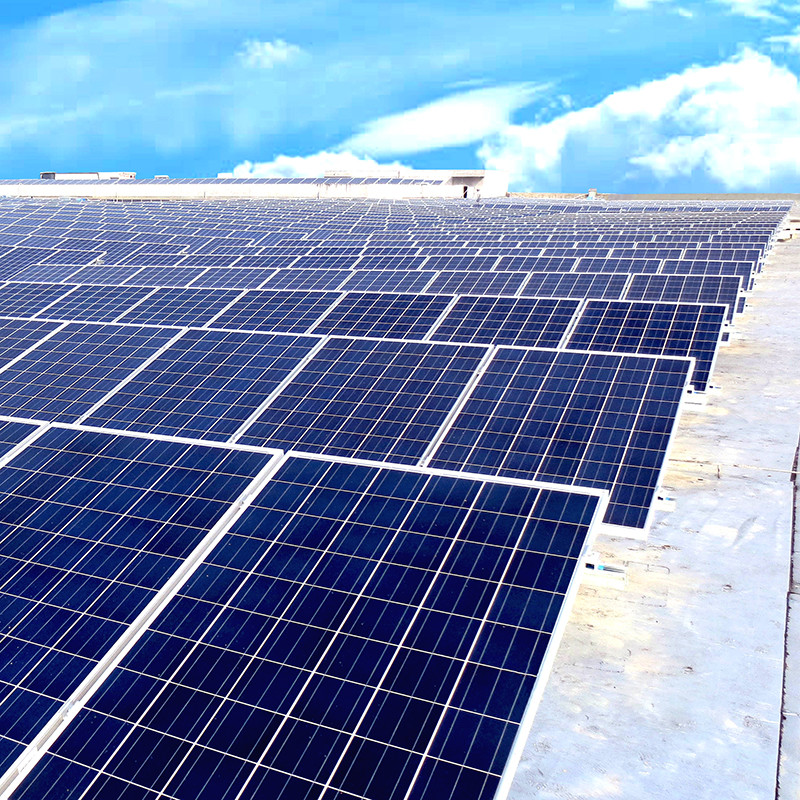

3. Project Display:

On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket 1On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket 2On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket 3On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket 4On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket 5On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket 6

4. Company Introduction:

On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket 7



5. Main product:

On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket 8

6. Certificates:

On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket 9

7. Packing:

On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket 10



8. Cooperation Partners:

On And Off Grid Solar Mounting Bracket Solar System Ground PV Solar Bracket 11



9. Necessary information:



For the solution and quotation, we need some details as the following





No. Item Remarks
1 Location, Country of the Projects
2 What's Total Capacity of solar Project ?
3 Max Wind Speed m/s
4 Snow Load (KN/)
5 which type landform the ground is ?
  A. Offshore Sea and island, coast, lake shore and desert area YES / NO
B. Fields, villages, jungles, hills and sparse houses and suburbs YES / NO
C. Urban areas with dense clusters of buildings YES / NO
D. Urban areas with dense buildings and high houses YES / NO
6 Foundation Forms
  A. PHC Pile (pretensioned spun high-strength concrete pile) YES / NO
B. Ramming Pile; YES / NO
C. Concrete; YES / NO
D. Bored Pile; YES / NO
E. Others
7 Layout of Solar Panels
8 how many modules per array
9 Size of solar panels
10 Installation angle of solar panels
11 Panel Weight
12 Watts per Solar Panel
13 Requirements on Main Materials of Structure
14 Requirement on the lowest height between solar panels and ground mm
15 How many arrays / units
16 other information
