Framed Or Frameless Panel Safety Adjustable Mounting System for Ground PV Panel Support Installation
Contact Person : Zhang
| Minimum Order Quantity : | 1000 Watt/Watts | Price : | US $0.05-0.18 / Watts |
|---|---|---|---|
| Packaging Details : | 1.Carton box,wooden pallet 2.Customized packing | Delivery Time : | within 15-25 work days after receipt deposit |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 100000 Watt/Watts per Week |
| Place of Origin: | CHINA | Brand Name: | TIANFON |
|---|---|---|---|
| Certification: | SGS,ISO 9001,ISO 14001,OHSAS 18000 | Model Number: | TF-G005 |
|
Detail Information |
|||
| Application: | Private, Government And Enterprise's Parking Lot | Surface Treatment: | Hot Dip Galvanizing And Anodized |
|---|---|---|---|
| Thickness: | 0.5mm-15mm | Type: | On Grid System, Off Grid System |
| Duration: | 25 Years | Warranty: | 10 Years |
| Installation Angle: | 5~45° | Wind Load: | ≤60m/s |
| Snow Load: | ≤1.4KN/m² | Material: | Q235B, Q345B, Component Aluminum Alloy & Stainless Steel Etc., Customized Upon Requirement. |
| Port: | Tianjin, Shanghai, Qingdao | Payment Terms: | L/C,D/A,D/P,T/T |
| High Light: | Aluminum Solar Mounting Rail,Roof Aluminum Solar Mounting Rail,Q345B Solar Panel Mounting System |
||
Product Description
Super Solar Wholesale Aluminum Solar Mounting Rail for Roof or Ground Solar Panel Mounting system
Solar mounting bracket is a kind of special bracket,which designed for placing, installing and fixing solar panels in solar PV power generation system. The materials are aluminum alloy, stainless steel... PV solar structure products are divided into ground mounting system, roof mounting system, pv carport solar mounting system, greenhouse mounting system......
If you have the confirmed project, i can send the question list to you, you check and collect the information, then send back to us, our engineer will make the drawing and advise the best price to you.
1. Technical Parameters :
| Item | Parameter |
| Application | Mountain, Plain, Highland, Desert |
| Installation Angle | Fixed degree,5-45° |
| Wind Load | ≤60m/s |
| Snow Load | ≤1.4KN/m² |
| Applicable Module | Framed or Frameless |
| Material | Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. |
| Module Orientation | portrait or landscape |
| Module type | Any type of PV moduels |
| Surface Treatment | Hot Dip Galvanizing & Anodized |
| Warranty | 10 years warranty and 25 years duration |
2. Detailed Introduction:

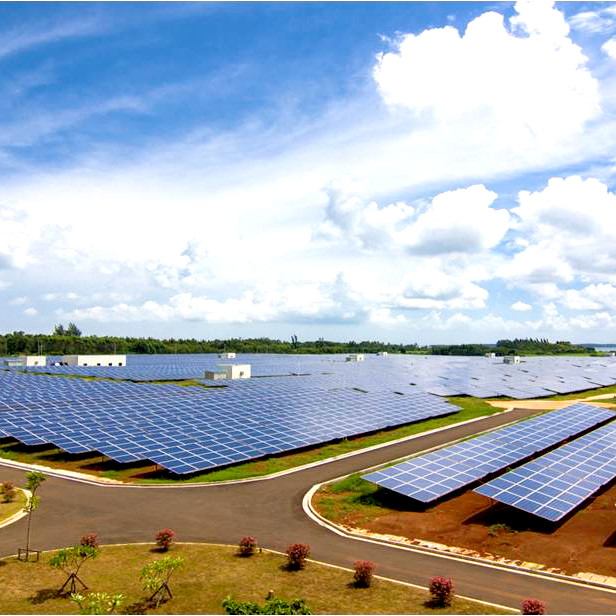

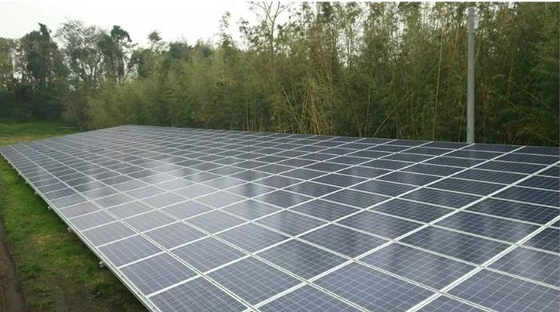

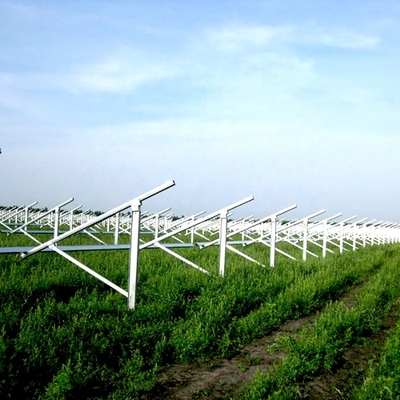

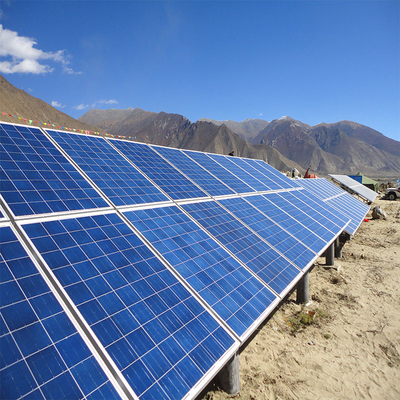

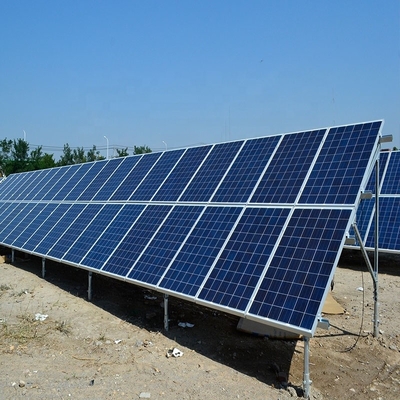

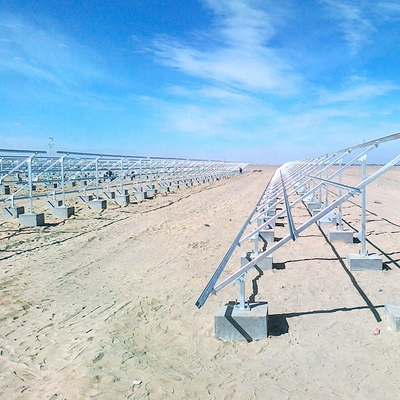

3. Project Display:
4. Company Introduction:
5. Main product:
6. Certificates:
7. Packing:
8. Cooperation Partners:
9. Necessary information:
For the solution and quotation, we need some details as the following
| No. | Item | Remarks |
| 1 | Location, Country of the Projects | |
| 2 | What's Total Capacity of solar Project ? | |
| 3 | Max Wind Speed m/s | |
| 4 | Snow Load (KN/㎡) | |
| 5 | which type landform the ground is ? | |
| A. Offshore Sea and island, coast, lake shore and desert area | YES / NO | |
| B. Fields, villages, jungles, hills and sparse houses and suburbs | YES / NO | |
| C. Urban areas with dense clusters of buildings | YES / NO | |
| D. Urban areas with dense buildings and high houses | YES / NO | |
| 6 | Foundation Forms | |
| A. PHC Pile (pretensioned spun high-strength concrete pile) | YES / NO | |
| B. Ramming Pile; | YES / NO | |
| C. Concrete; | YES / NO | |
| D. Bored Pile; | YES / NO | |
| E. Others | ||
| 7 | Layout of Solar Panels | |
| 8 | how many modules per array | |
| 9 | Size of solar panels | |
| 10 | Installation angle of solar panels | |
| 11 | Panel Weight | |
| 12 | Watts per Solar Panel | |
| 13 | Requirements on Main Materials of Structure | |
| 14 | Requirement on the lowest height between solar panels and ground | mm |
| 15 | How many arrays / units | |
| 16 | other information |
