Hot Dip Galvanized Ground Solar Mounting Bracket High Power Output

Minimum Order Quantity : 1000 Watt/Watts Price : US $0.0362-0.518 / Watts
Packaging Details : 1.Carton box,wooden pallet 2.Customized packing Delivery Time : within 15-25 work days after receipt deposit
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100000 Watt/Watts per Week
Place of Origin: CHINA Brand Name: TIANFON
Certification: SGS,ISO 9001,ISO 14001,OHSAS 18000 Model Number: TF-G010

Detail Information

Application: Private, Government And Enterprise's Parking Lot Surface Treatment: Hot Dip Galvanizing And Anodized
Thickness: 0.5mm-15mm Type: On Grid System, Off Grid System
Duration: 25 Years Warranty: 10 Years
Installation Angle: 5~45° Wind Load: ≤60m/s
Snow Load: ≤1.4KN/m² Material: Q235B, Q345B, Component Aluminum Alloy & Stainless Steel Etc., Customized Upon Requirement.
Port: Tianjin, Shanghai, Qingdao Payment Terms: L/C,D/A,D/P,T/T
High Light:

Galvanized Ground Solar Mounting Bracket

,

Hot Galvanized Solar Mounting Bracket

,

Anodized Ground Solar Mounting Bracket

Product Description

Cheap Hot-Dip Galvanized Ground Solar Mounting Bracket High Power Output Ground Mounting System



The ground mounting system was widely used in the construction of large-scale solar power station support, the material mainly made of steel solar system and aluminum solar system. Based on the global construction performance, the scope of the use of shaped steel ground pv solar system is relatively large, while the aluminum ground PV solar system is relatively small.


Steel PV bracket system has high cost performance,high strength, standard outdoor use,and high global recognition. Alminum PV bracket system has the advantages of anti-corrosion, no rust, beautiful, easy to install, its main anti-corrosion and rust ability outstanding, suitable for the installation of small ground and medium-sized roof photovoltaic power generation system, light and convenient construction.



1. Technical Parameters :



Item Parameter
Application Mountain, Plain, Highland, Desert
Installation Angle Fixed degree,5-45°
Wind Load ≤60m/s
Snow Load ≤1.4KN/m²
Applicable Module Framed or Frameless
Material Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement.
Module Orientation portrait or landscape
Module type Any type of PV moduels
Surface Treatment Hot Dip Galvanizing & Anodized
Warranty 10 years warranty and 25 years duration



2. Detailed Introduction:​​

Hot Dip Galvanized Ground Solar Mounting Bracket High Power Output 0

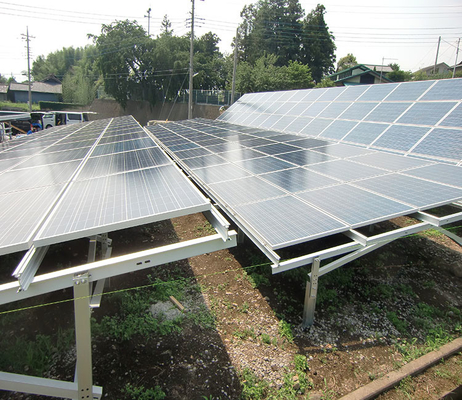

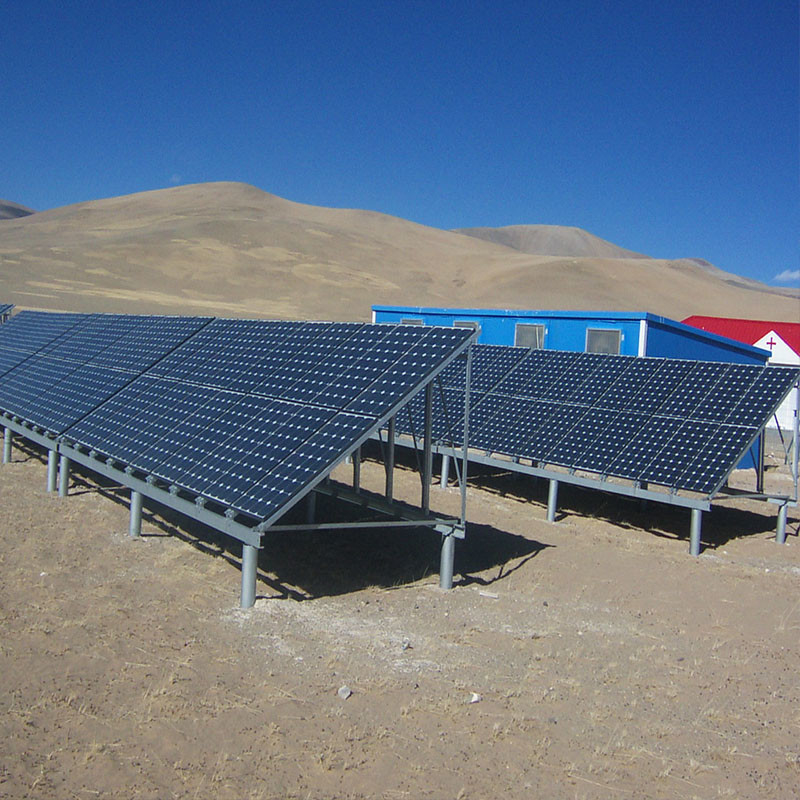

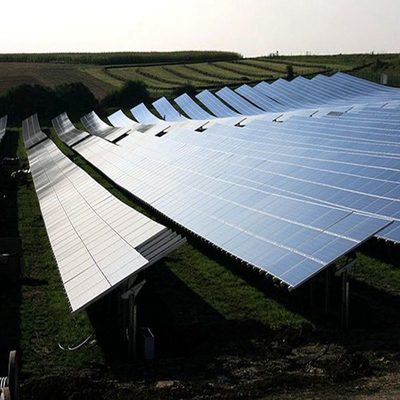

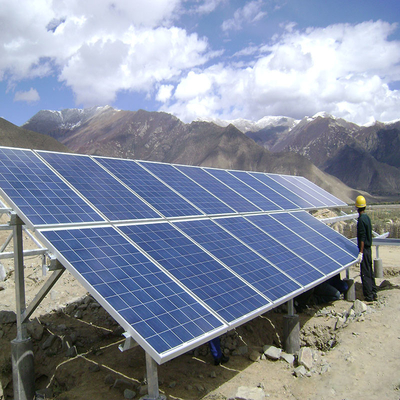

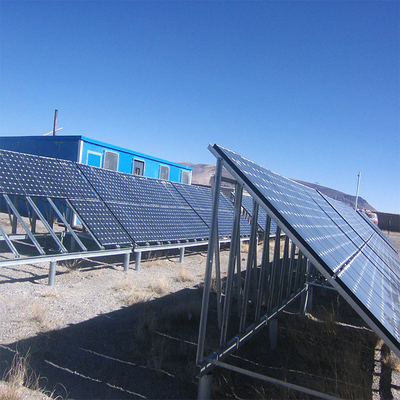

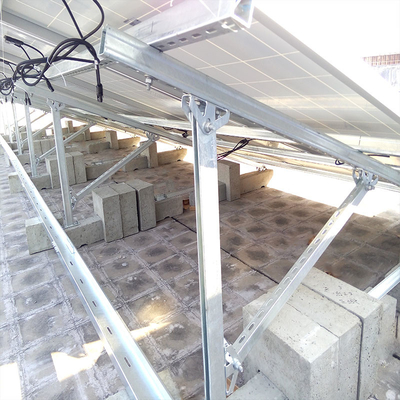

3. Project Display:

Hot Dip Galvanized Ground Solar Mounting Bracket High Power Output 1Hot Dip Galvanized Ground Solar Mounting Bracket High Power Output 2Hot Dip Galvanized Ground Solar Mounting Bracket High Power Output 3Hot Dip Galvanized Ground Solar Mounting Bracket High Power Output 4Hot Dip Galvanized Ground Solar Mounting Bracket High Power Output 5

4. Company Introduction:

Hot Dip Galvanized Ground Solar Mounting Bracket High Power Output 6



5. Main product:

Hot Dip Galvanized Ground Solar Mounting Bracket High Power Output 7

6. Certificates:

Hot Dip Galvanized Ground Solar Mounting Bracket High Power Output 8

7. Packing:

Hot Dip Galvanized Ground Solar Mounting Bracket High Power Output 9



8. Cooperation Partners:

Hot Dip Galvanized Ground Solar Mounting Bracket High Power Output 10



9. Necessary information:



For the solution and quotation, we need some details as the following





No. Item Remarks
1 Location, Country of the Projects
2 What's Total Capacity of solar Project ?
3 Max Wind Speed m/s
4 Snow Load (KN/)
5 which type landform the ground is ?
  A. Offshore Sea and island, coast, lake shore and desert area YES / NO
B. Fields, villages, jungles, hills and sparse houses and suburbs YES / NO
C. Urban areas with dense clusters of buildings YES / NO
D. Urban areas with dense buildings and high houses YES / NO
6 Foundation Forms
  A. PHC Pile (pretensioned spun high-strength concrete pile) YES / NO
B. Ramming Pile; YES / NO
C. Concrete; YES / NO
D. Bored Pile; YES / NO
E. Others
7 Layout of Solar Panels
8 how many modules per array
9 Size of solar panels
10 Installation angle of solar panels
11 Panel Weight
12 Watts per Solar Panel
13 Requirements on Main Materials of Structure
14 Requirement on the lowest height between solar panels and ground mm
15 How many arrays / units
16 other information
