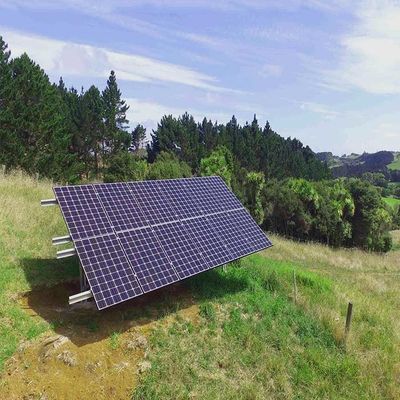

Highly Pre-assembled Solar Ground PV Mounting System

Minimum Order Quantity :	1000 Watt/Watts	Price :	US $0.05-0.18 / Watts
Packaging Details :	1.Carton box,wooden pallet 2.Customized packing	Delivery Time :	within 15-25 work days after receipt deposit
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Supply Ability :	100000 Watt/Watts per Week

Place of Origin:	CHINA	Brand Name:	TIANFON
Certification:	SGS,ISO 9001,ISO 14001,OHSAS 18000,TUV,CE	Model Number:	TF-G025

Detail Information
Installation Site:	Ground	Foundation:	Ground Screw Or Concrete Foundation
Thickness:	0.5mm-15mm	Type:	On Grid System, Off Grid System
Installation Angle:	5~30°	Wind Load:	≤60m/s
Snow Load:	≤1.4KN/m²	Material:	Q235B, Q345B, Component Aluminum Alloy & Stainless Steel Etc., Customized Upon Requirement.
Payment Terms:	L/C,D/A,D/P,T/T	Delivery Detail:	Delivery Time:7--25 Days After Receiving Customer’s Deposits

Product Description

Tianfon Highly Pre-assembled Solar Ground PV Mounting System is used to fix the solar PV panels and provide support and inclination to the system. This system is with excellent wind and snow resistance.

Professional structural design ensures the strength of the whole system and greatly improves the installation efficiency.

1. Features:

► Flexibility and Adjustability.

► There is no need for on-site cutting and drilling, which greatly shortens the on-site installation time.

► Our systems are designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.

► The racking systems can withstand extreme weather condition. The main supporting components have also been tested to ensure their structure and bearing capacity.

► Tianfon mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.

2. Technical Parameters:

Item	Parameter
Application	Mountain, Plain, Highland, Desert
Installation Angle	Fixed degree,5-45°
Wind Load	≤60m/s
Snow Load	≤1.4KN/m²
Applicable Module	Framed or Frameless
Material	Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement.
Module Orientation	portrait or landscape
Module type	Any type of PV moduels
Surface Treatment	Hot Dip Galvanizing & Anodized
Warranty	10 years warranty and 25 years duration

3. Detailed Introduction:

Highly Pre-assembled Solar Ground PV Mounting System 0

4. Project Display:

5. Company introduction:

6. Main products:

Highly Pre-assembled Solar Ground PV Mounting System 2

7. Certificates:

8.Packing and delivery:

► Place of loading: Basic Seaport, China

► Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface

► Payment Terms: L/C,D/A,D/P,T/T

► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits

9. Cooperate customers:
